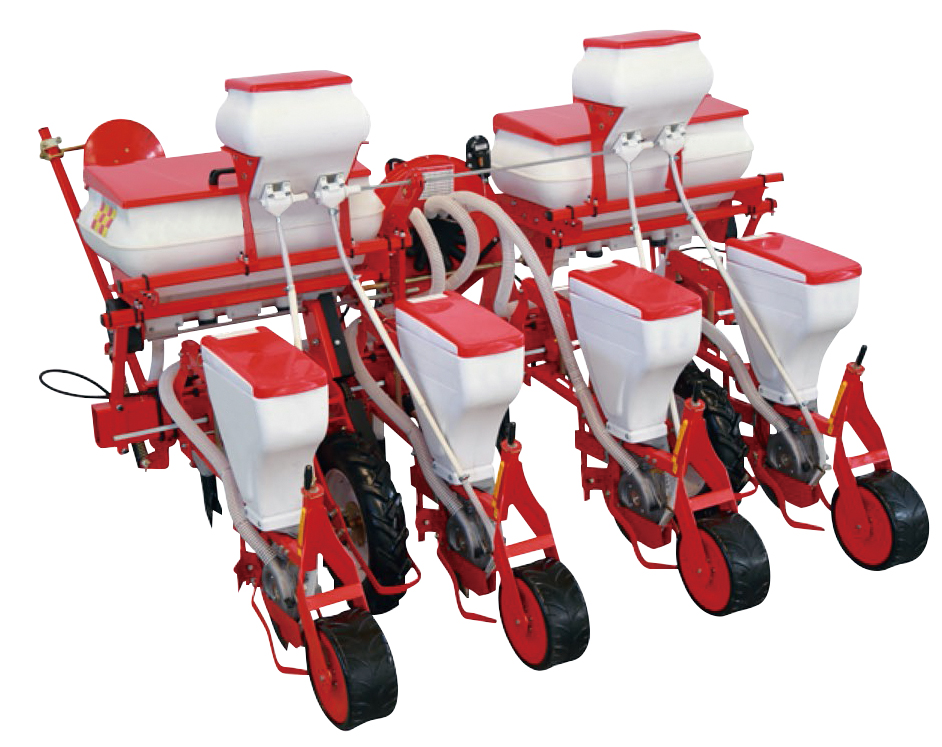

Pneumatic Planter
FEATURE :
• Suit for corns、Soybean、Azuki bean、Cotton、Peanut and Oil sunflower
• Ditch、Plant seeds、Fertilizer、Cover soil、Press soil at the same time
• Plant spacing is adjustable and plant accurately.
• Suit for corns、Soybean、Azuki bean、Cotton、Peanut and Oil sunflower
• Ditch、Plant seeds、Fertilizer、Cover soil、Press soil at the same time
• Plant spacing is adjustable and plant accurately.
1. Applicable horsepower is 90 hp up.
2. The plant spacing adjustment range is 3-85 cm.
3. The capacity of each seed capacity is 35 liter x 4, and the capacity of each fertilizer capacity is 160 liter x 2. Medicine capacity 15L x 2.
4. The driving wheel is a floating wheel with a strong spring device, so that the seeder can match the undulations of the terrain during operation, and the seed sowing effect is better.
The floating wheel spring can be adjusted to make the soil loose and hard to varying degrees.
5. The marker is equipped with a hydraulic rod, which uses hydraulic pressure to control the lifting and lowering.
6. The seeding disc is driven by a transmission shaft.
7. The fertilizer roller is made of stainless steel.
8. There is a pressure gauge for vacuum sowing, and the vacuum pressure can be adjusted according to the size of the seeds.
9. There is an outlet design at the bottom of the seeder. After sowing, the remaining seeds can be easily operated to leak out the remaining seeds.
10. Adding discs can increase accuracy.
11. Customized pedals.
2. The plant spacing adjustment range is 3-85 cm.
3. The capacity of each seed capacity is 35 liter x 4, and the capacity of each fertilizer capacity is 160 liter x 2. Medicine capacity 15L x 2.
4. The driving wheel is a floating wheel with a strong spring device, so that the seeder can match the undulations of the terrain during operation, and the seed sowing effect is better.
The floating wheel spring can be adjusted to make the soil loose and hard to varying degrees.
5. The marker is equipped with a hydraulic rod, which uses hydraulic pressure to control the lifting and lowering.
6. The seeding disc is driven by a transmission shaft.
7. The fertilizer roller is made of stainless steel.
8. There is a pressure gauge for vacuum sowing, and the vacuum pressure can be adjusted according to the size of the seeds.
9. There is an outlet design at the bottom of the seeder. After sowing, the remaining seeds can be easily operated to leak out the remaining seeds.
10. Adding discs can increase accuracy.
11. Customized pedals.
