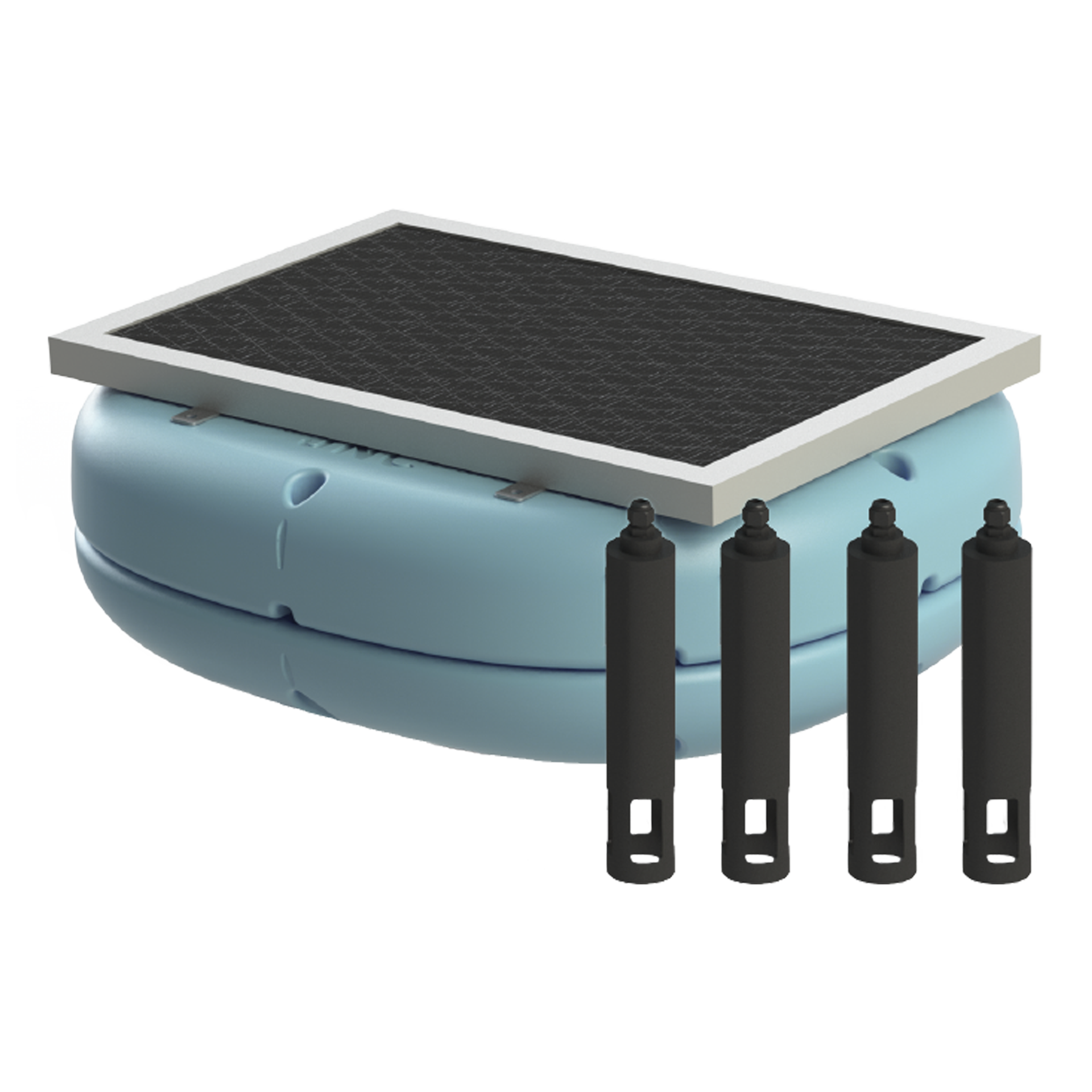

I-Mercury
‧Abnormal alarms, reduce risks and losses
‧Quick installation and upgrade which increase industrial profits.
‧Automatic cleaning and maintenance-free, saving 80% of labor costs.

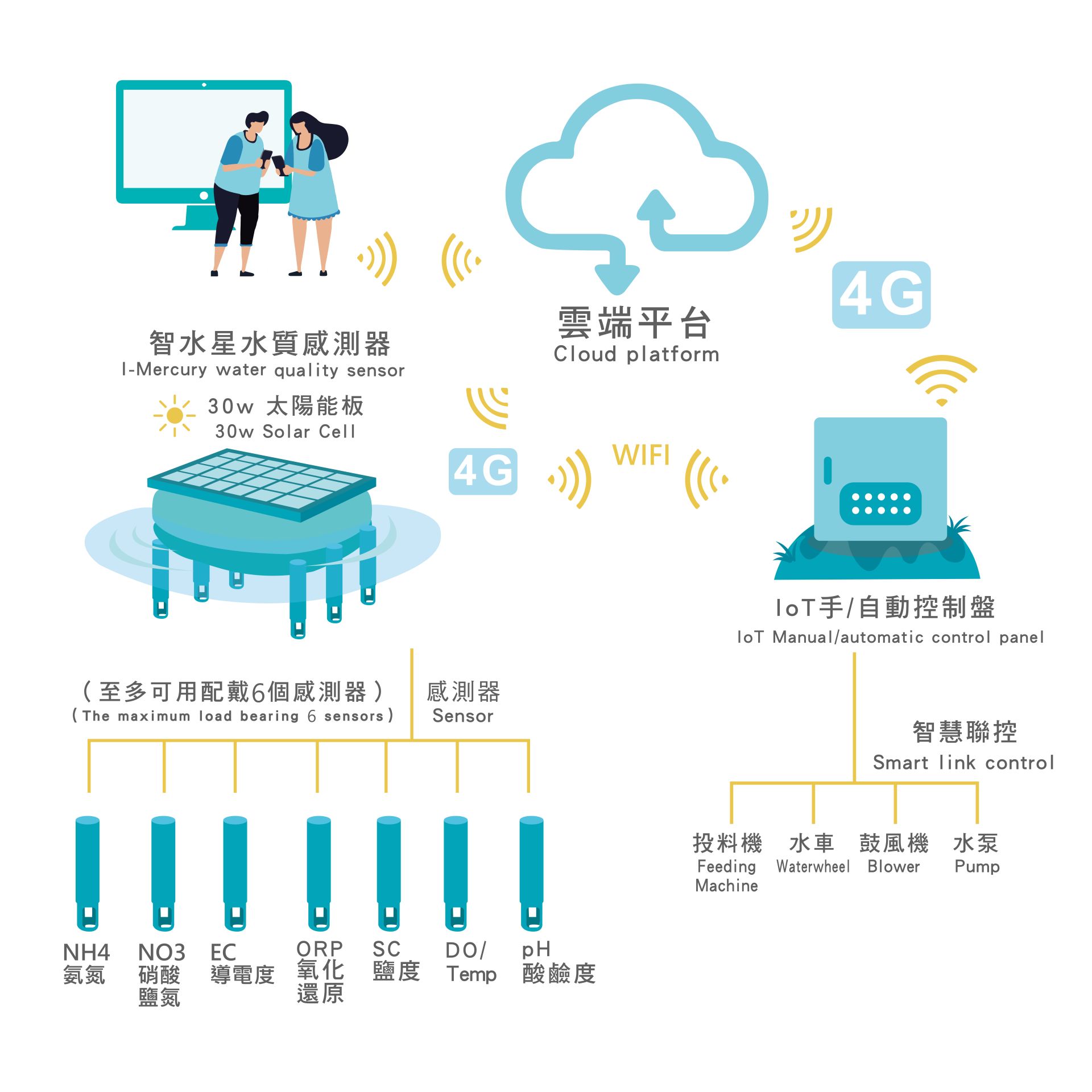

‧Intelligent control waterwheel/feeding machine /water treatment, etc.
‧Applications: Aquaculture, rivers, reservoirs, lakes, oceans, sewage, reclaimed Water.
‧Save energy power efficiency 100%. Green energy supply 365 days without shutdown.
‧Quick installation and upgrade which increase industrial profits.
‧Automatic cleaning and maintenance-free, saving 80% of labor costs.
‧Intelligent control waterwheel/feeding machine /water treatment, etc.
‧Applications: Aquaculture, rivers, reservoirs, lakes, oceans, sewage, reclaimed Water.
‧Save energy power efficiency 100%. Green energy supply 365 days without shutdown.
‧Power:Adapter:
(1)Input:AC 100-240V
(2)Output:DC 12V maximum 2A current
(3)Equipment :DC12～36V
(4)Power consumption:5.4W(3 pcs sensors)
‧Environment:
(1)Operating temp:-20~70°C
(2)0 ~ 95%RH non-condensing (WiFi 0~70°C)
(3)Storage temp:-30~70°C
‧Communication:
(1)Ethernet interface:RJ-45 Ethernet with Web Service, Modbus TCP
(2)Communication interface:A set of RS-485
(3)Communications Protocol:Modbus RTU
(4)Wireless communication:4G
‧Physicalconditions:
(1)Dimension(mm):252X175X60(W×H×D)
(2)Weight:<0.7kg
‧Housing
(1)Material:PC+Anti-UV
(2)Ingress Protection Rating:IP68
(1)Input:AC 100-240V
(2)Output:DC 12V maximum 2A current
(3)Equipment :DC12～36V
(4)Power consumption:5.4W(3 pcs sensors)
‧Environment:
(1)Operating temp:-20~70°C
(2)0 ~ 95%RH non-condensing (WiFi 0~70°C)
(3)Storage temp:-30~70°C
‧Communication:
(1)Ethernet interface:RJ-45 Ethernet with Web Service, Modbus TCP
(2)Communication interface:A set of RS-485
(3)Communications Protocol:Modbus RTU
(4)Wireless communication:4G
‧Physicalconditions:
(1)Dimension(mm):252X175X60(W×H×D)
(2)Weight:<0.7kg
‧Housing
(1)Material:PC+Anti-UV
(2)Ingress Protection Rating:IP68
