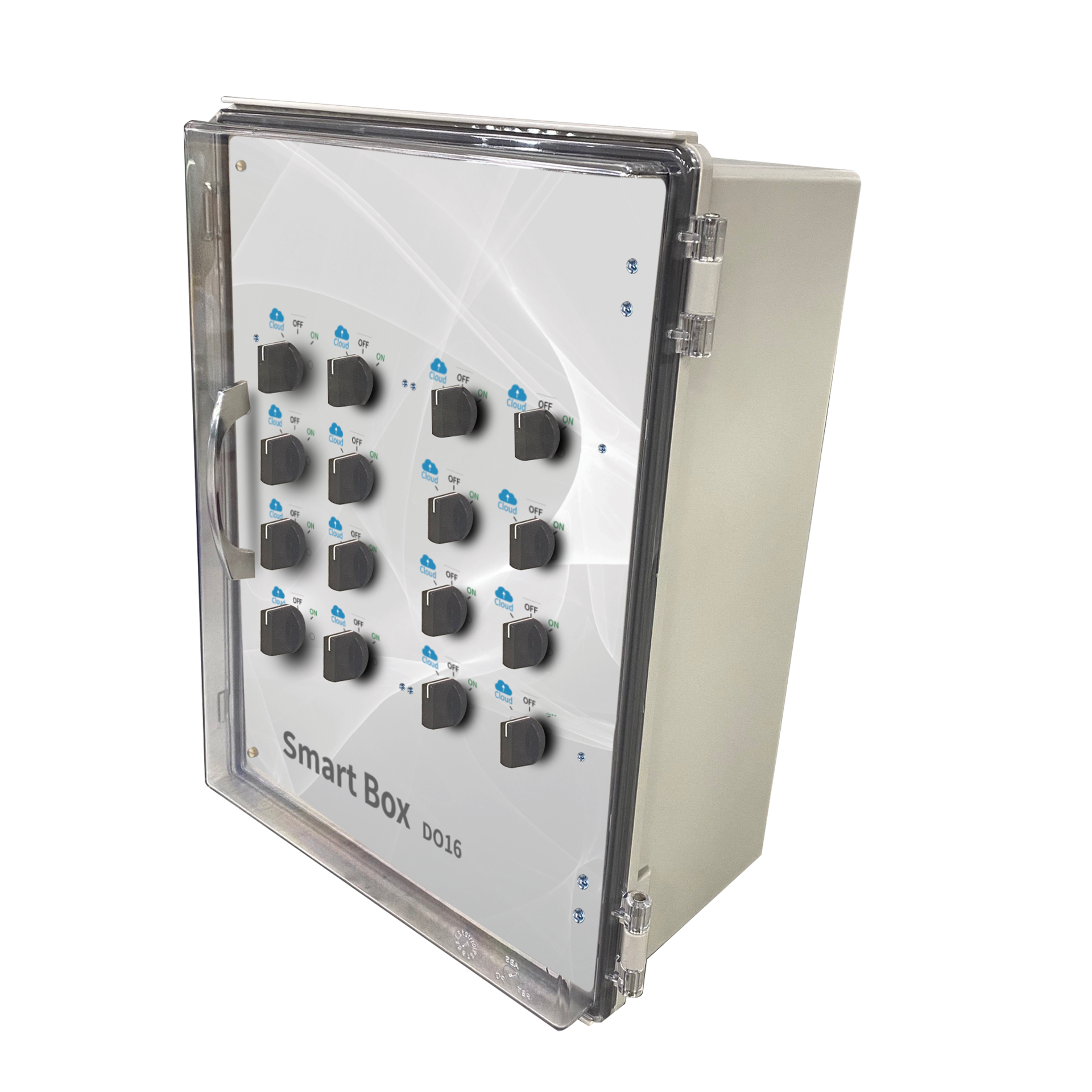

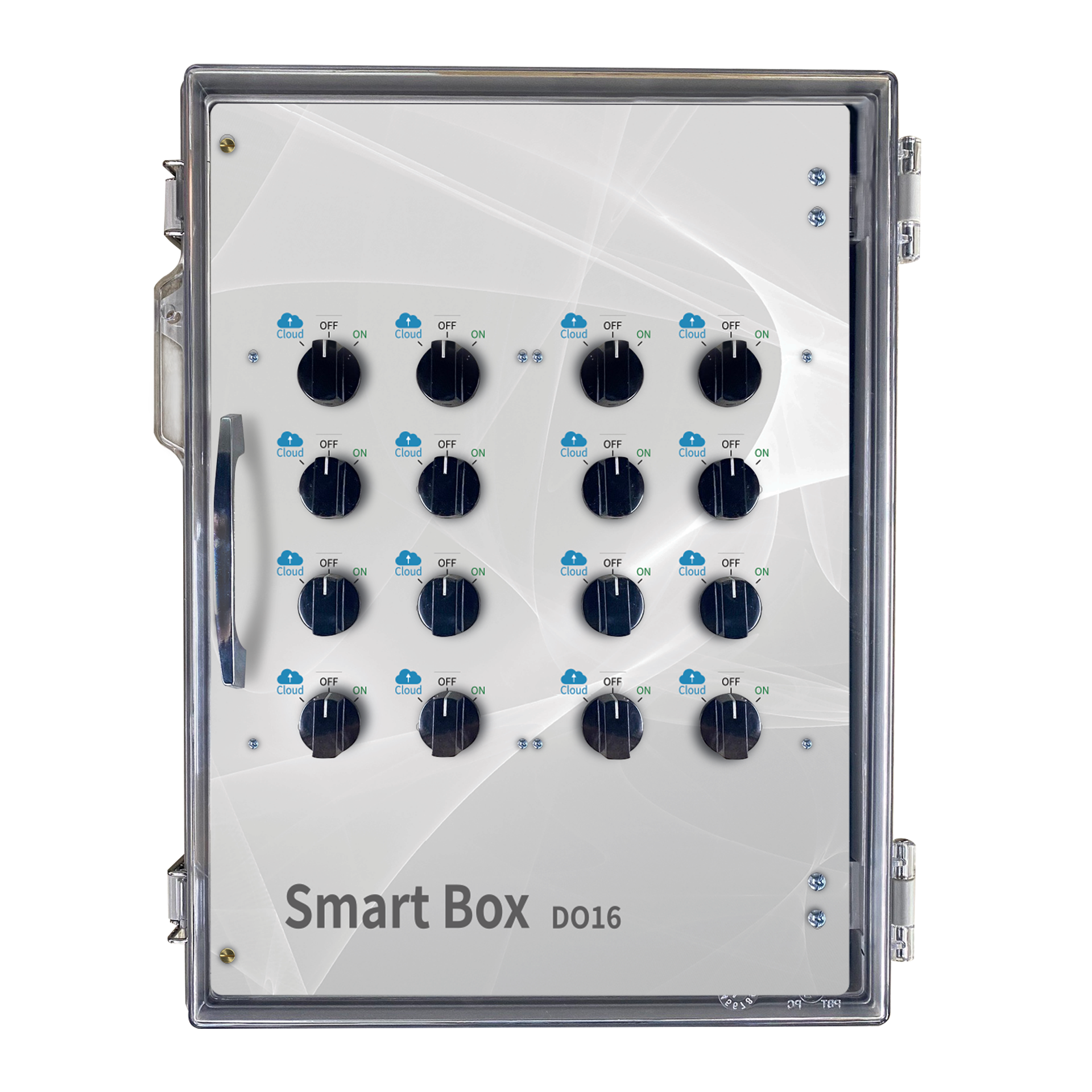

Manual/automatic control panel
‧Can control up to 16 groups of loop devices.
‧With power and signal lightning protection.
‧Equipped with 4G (optional) and wifi communication.
‧Modular manufacturing, no need for customization, the product is stable and reliable.
‧Easy to maintain, no need to check the wiring, fool-proof connectors, just replace the circuit board and it can be used normally.
‧No need to check the installation line / no program / no downtime / no customized distribution, the inventory is shipped directly, and the installation is quick and online.
‧The control logic can be set on the web page by itself, without the need to write a program, and will not become a PLC orphan in the future.
‧Solve the problem of no manual switches for IoT systems in field equipment. (If the system is damaged, it can still be started and stopped on site,avoid mutual competition between the cloud and the site).
[📍Applications]:Plants, animal husbandry, breeding factories, various controls.
‧With power and signal lightning protection.
‧Equipped with 4G (optional) and wifi communication.
‧Modular manufacturing, no need for customization, the product is stable and reliable.
‧Easy to maintain, no need to check the wiring, fool-proof connectors, just replace the circuit board and it can be used normally.
‧No need to check the installation line / no program / no downtime / no customized distribution, the inventory is shipped directly, and the installation is quick and online.
‧The control logic can be set on the web page by itself, without the need to write a program, and will not become a PLC orphan in the future.
‧Solve the problem of no manual switches for IoT systems in field equipment. (If the system is damaged, it can still be started and stopped on site,avoid mutual competition between the cloud and the site).
[📍Applications]:Plants, animal husbandry, breeding factories, various controls.
(1)Power supply:110/220VAC(50/60Hz)
(2)Power consumption:100W
(3)Communication interfa:RS-485*1/Modbus RTU
(4)Ethernet interfac:RJ-45 Ethernet cable with Web Service function/Modbus
(5)Control poin:4/8/16 groups
(6)Case size:Galvanized steel painted. 304 stainless steel:Outdoor double door with window:600*800*210mm(W×H×D)
IP68 PC waterproof box:Outdoor double door with window:300*400*180mm(W×H×D)
(7)Weigh:Galvanized steel painted. 304 stainless steel:42 Kg/IP68 PC waterproof box:5 Kg
(2)Power consumption:100W
(3)Communication interfa:RS-485*1/Modbus RTU
(4)Ethernet interfac:RJ-45 Ethernet cable with Web Service function/Modbus
(5)Control poin:4/8/16 groups
(6)Case size:Galvanized steel painted. 304 stainless steel:Outdoor double door with window:600*800*210mm(W×H×D)
IP68 PC waterproof box:Outdoor double door with window:300*400*180mm(W×H×D)
(7)Weigh:Galvanized steel painted. 304 stainless steel:42 Kg/IP68 PC waterproof box:5 Kg
