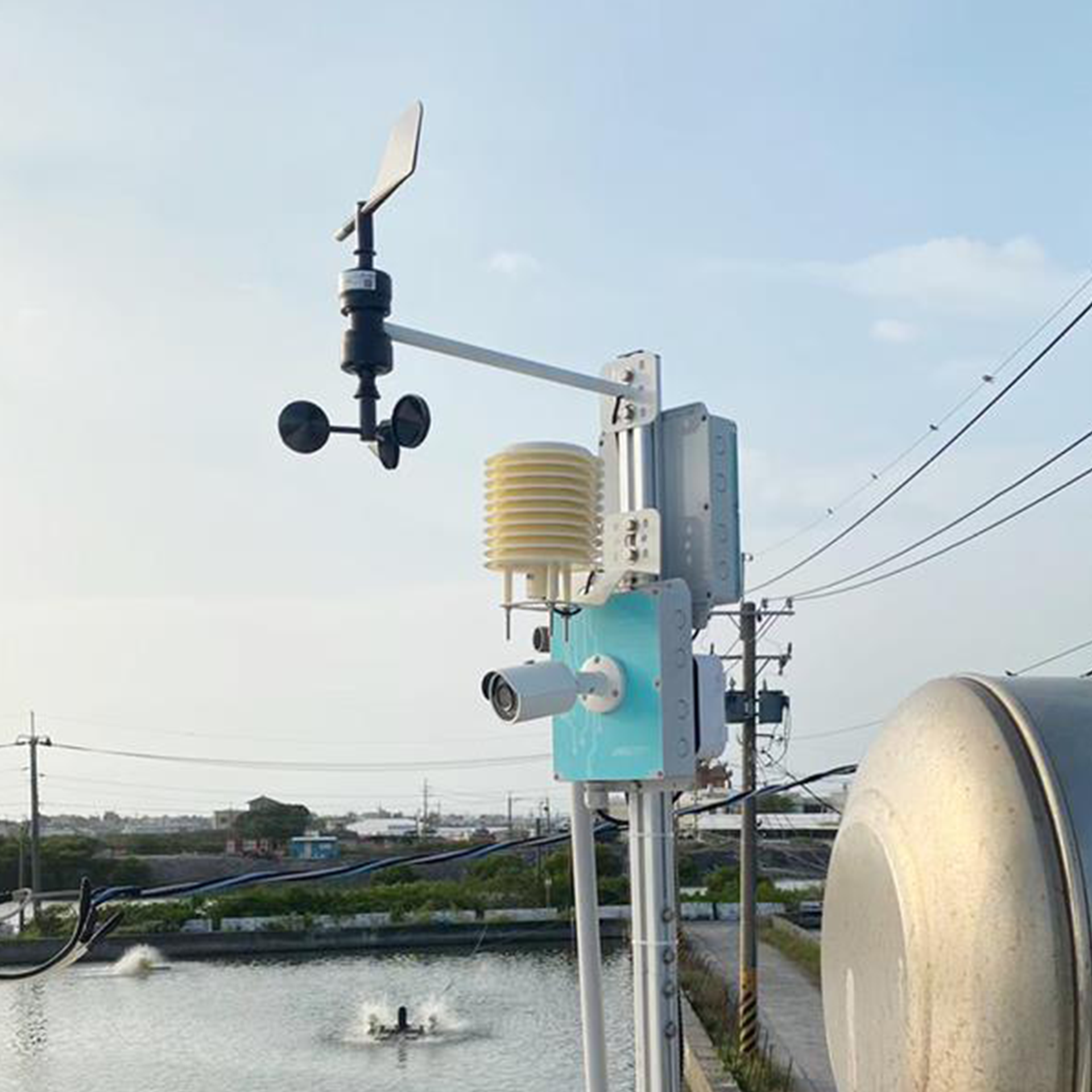

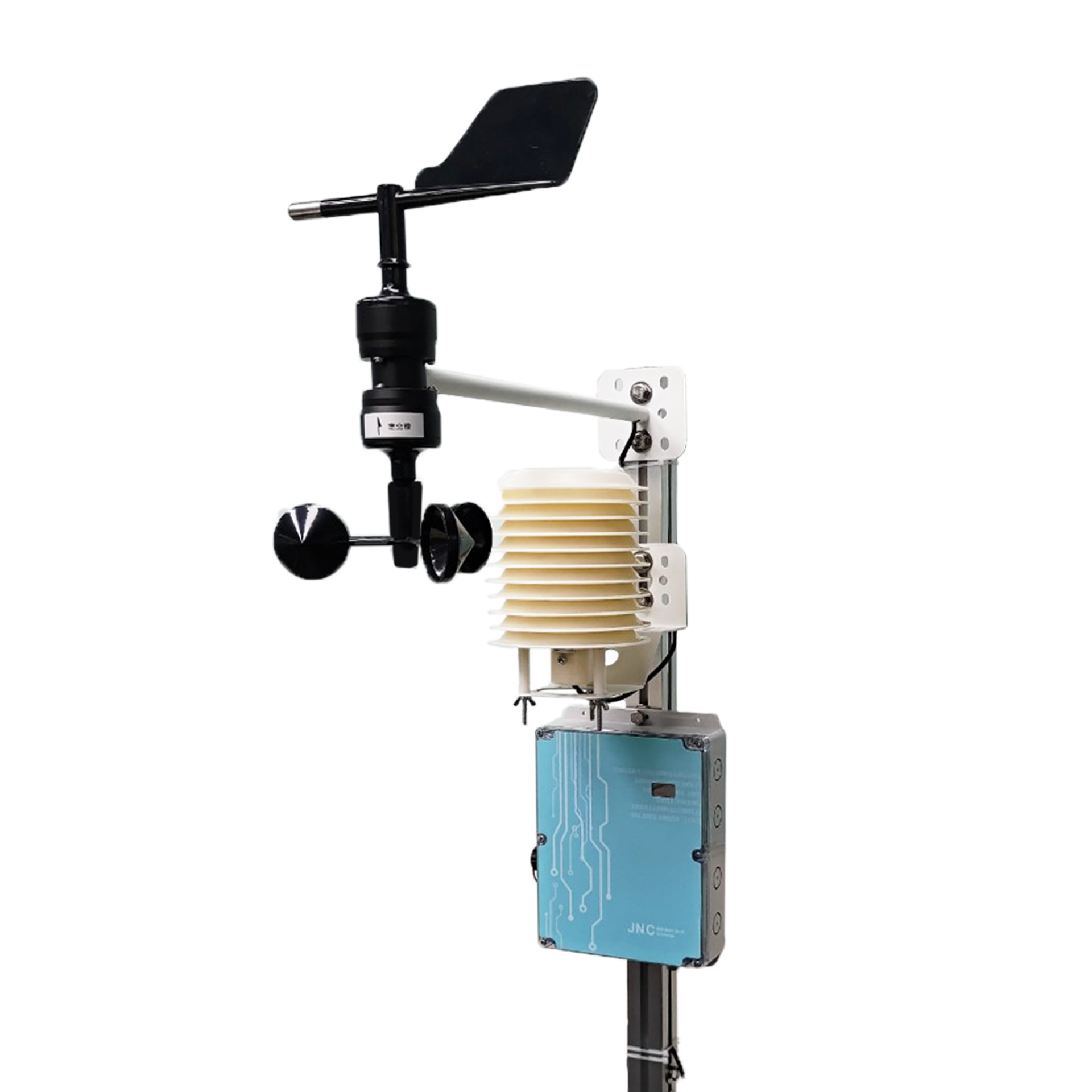

Cloud weather station
‧Can be charged with solar panels.
‧Waterproof quick connector, easy to install.
‧The historical data in the USB can be downloaded remotely.
‧It has a web interface, and can be remotely controlled by using a browser.
‧3-network architecture: with Ethernet, WiFi, 4G (optional) communicationat the same time.
‧Active early warning: 4G communication can be selected to sendtext messages. (full Chinese culture and power failure text messages)
‧The gas sensor is designed for outdoor light louver shell, with accurate sensing,
fast response and high data transmission efficiency.
[📍Applications]:Orchid Garden, Greenhouse, Mushroom, Environmental Monitoring
‧Waterproof quick connector, easy to install.
‧The historical data in the USB can be downloaded remotely.
‧It has a web interface, and can be remotely controlled by using a browser.
‧3-network architecture: with Ethernet, WiFi, 4G (optional) communicationat the same time.
‧Active early warning: 4G communication can be selected to sendtext messages. (full Chinese culture and power failure text messages)
‧The gas sensor is designed for outdoor light louver shell, with accurate sensing,
fast response and high data transmission efficiency.
[📍Applications]:Orchid Garden, Greenhouse, Mushroom, Environmental Monitoring
‧Wind speed specifications
(1)Measuring principle:Rotary Cup
(2)Measuring range:0m/s~70m/s (3)Accuracy:± 0.3m/sor±0.5%F.S
(4)Resolution:0.1m/s (5)Minimum starting speed:≥ 0.5m/s
(6)Material:Anti-UV ABS (7)Power consumption:≤ 0.48W
(8)Power supply:12～24VDC (9)Operating temperature:-35~60℃
(10)Working humidity:0~100% no condensation (11)Waterproof level:IP64
(12)Rotation diameter:180mm (13)Signal output:RS-485 ModBus RTU
‧Wind direction specifications
(1)Measuring principle:Potential difference (2)Measuring range:360 °
(3)Accuracy:±3 ° (4)Resolution:1 °
(5)Minimum starting speed:≥ 0.5 m/s (6)Power consumption:≤ 0.48W
(7)Power supply:12～24VDC (8)Operating temperature:-35~60 ℃
(9)Working humidity:0~100% no condensation (10)Waterproof level:IP64
(11)Rotation diameter:296mm (12)Signal output:RS-485 ModBus RTU
‧Weather station controller specifications
(1)Power:Transformer:AC input:100～240V(50/60Hz)
(2)Equipment:Power consumption:8.5W
(3)DC output:12V maximum 2A current
‧Environment
(1)Working Temp:-20~70°C
(2)0 ~ 95%RH non-condensing (WiFi 0~70°C)
(3)Storage Temp:-30~70°C
‧Communication Function
(1)Display:Backlit color LCD
(2)Ethernet interface:RJ-45 Ethernet cable with Web Service function、Protocol Modbus (3)TCP/Communications protocol:Modbus RTU, MQTT
(4)Wired communication:4G / NBIoT (The above options)
‧Physical conditions
(1)Size (mm):252 x 175 x 60(W×H×D)
(2)Weight:<0.7kg
(3)Shell:Material:PC+Anti-UV/Waterproof level:IP68
(4)Record (optional) :Optional USB recording function, maximum support 64GB
(1)Measuring principle:Rotary Cup
(2)Measuring range:0m/s~70m/s (3)Accuracy:± 0.3m/sor±0.5%F.S
(4)Resolution:0.1m/s (5)Minimum starting speed:≥ 0.5m/s
(6)Material:Anti-UV ABS (7)Power consumption:≤ 0.48W
(8)Power supply:12～24VDC (9)Operating temperature:-35~60℃
(10)Working humidity:0~100% no condensation (11)Waterproof level:IP64
(12)Rotation diameter:180mm (13)Signal output:RS-485 ModBus RTU
‧Wind direction specifications
(1)Measuring principle:Potential difference (2)Measuring range:360 °
(3)Accuracy:±3 ° (4)Resolution:1 °
(5)Minimum starting speed:≥ 0.5 m/s (6)Power consumption:≤ 0.48W
(7)Power supply:12～24VDC (8)Operating temperature:-35~60 ℃
(9)Working humidity:0~100% no condensation (10)Waterproof level:IP64
(11)Rotation diameter:296mm (12)Signal output:RS-485 ModBus RTU
‧Weather station controller specifications
(1)Power:Transformer:AC input:100～240V(50/60Hz)
(2)Equipment:Power consumption:8.5W
(3)DC output:12V maximum 2A current
‧Environment
(1)Working Temp:-20~70°C
(2)0 ~ 95%RH non-condensing (WiFi 0~70°C)
(3)Storage Temp:-30~70°C
‧Communication Function
(1)Display:Backlit color LCD
(2)Ethernet interface:RJ-45 Ethernet cable with Web Service function、Protocol Modbus (3)TCP/Communications protocol:Modbus RTU, MQTT
(4)Wired communication:4G / NBIoT (The above options)
‧Physical conditions
(1)Size (mm):252 x 175 x 60(W×H×D)
(2)Weight:<0.7kg
(3)Shell:Material:PC+Anti-UV/Waterproof level:IP68
(4)Record (optional) :Optional USB recording function, maximum support 64GB
