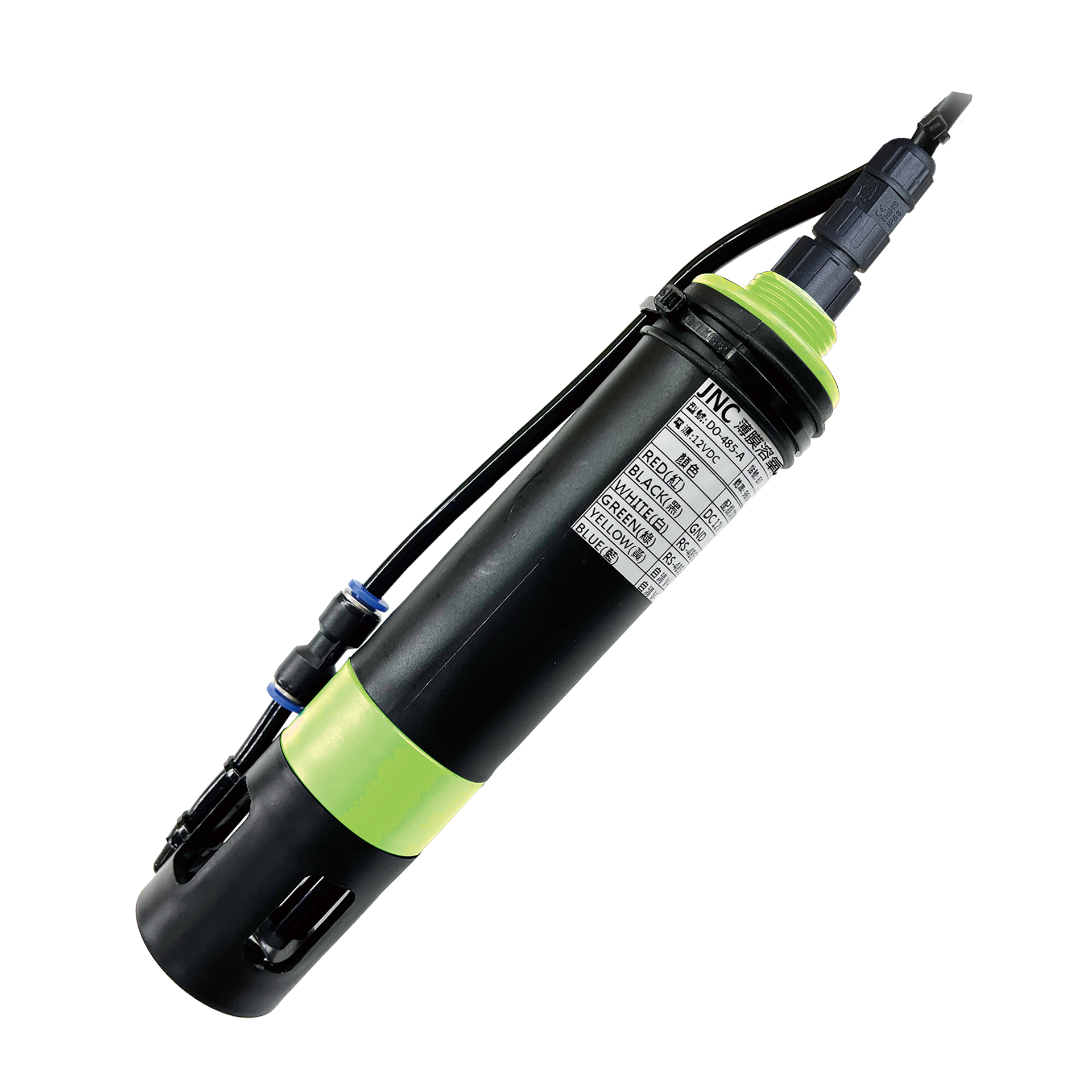

DO Sensor
‧With dual digital communication of RS-485 and Wi-Fi.
‧Standard Modbus RTU and can connect to the global IoT.
‧Integrated design, and built-in IoT transmission and sensor.

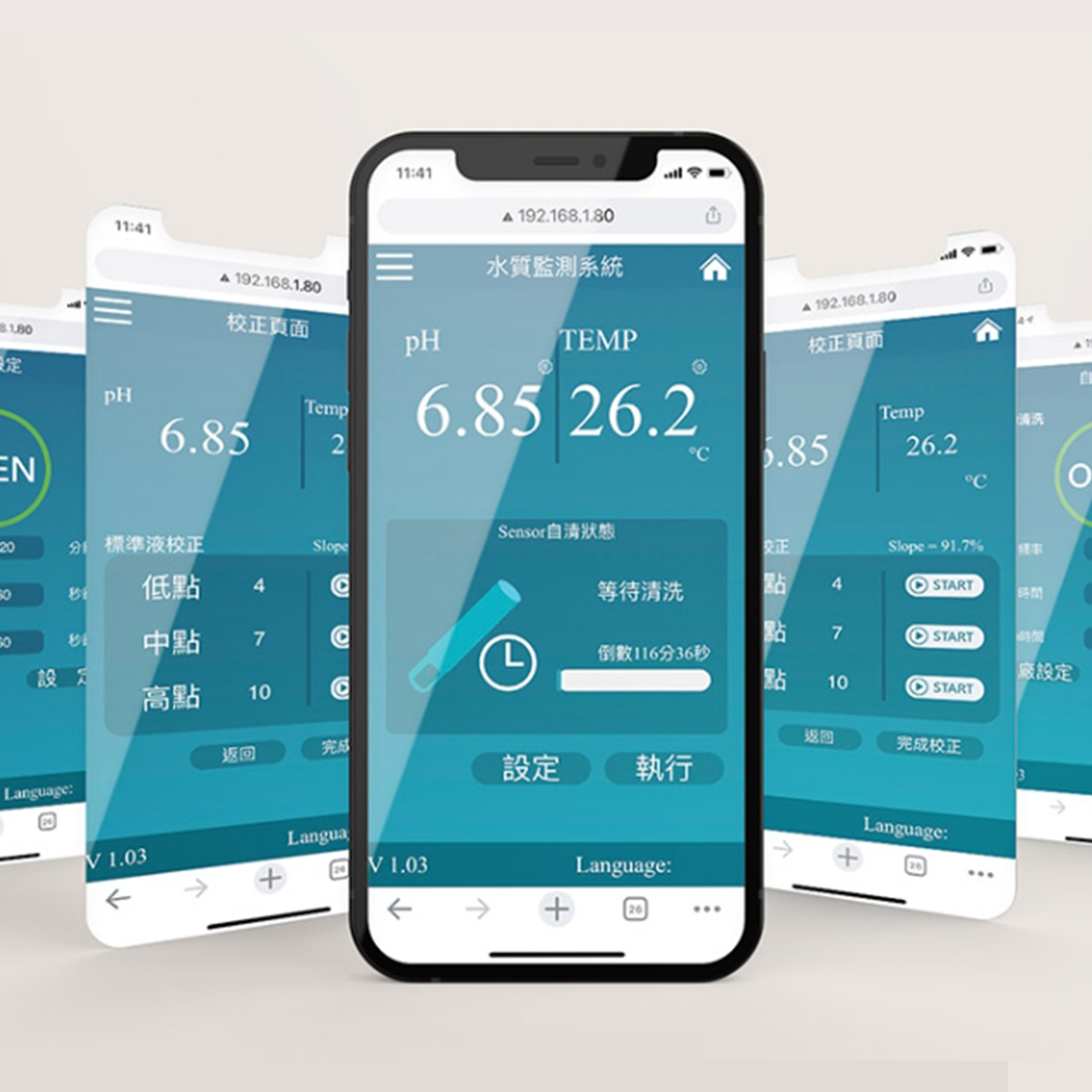

‧Operating with mobile web pages, it is convenient to on-site operation.
‧The high-strength isolated cable can be put to use directly, and the signal is stable.
‧Switching protective cover to standard solution cover on site, it is convenient for calibration.
‧Ultra-low power consumption, it is suitable for large-scale deployment of green energy IoTs.
‧Wisdom design, storing parameter calibration, it can be installed directly on site after calibration.
‧IP68 submerged type and corrosion resistant material which can put into water without protective sleeve.
‧The NO3 sensor is equipped with temperature compensation and measurement (in accordance with NIEA W218.51C).
‧During calibration and auto-cleaning, keep the last reading value to avoid misoperation, and it read the state at the same time (calibrating/auto-cleaning/stabilizing).
[📍Applications]: Sewage, drinking water, Subterranean water, Aquaculture, River and lake detecting system.
‧Standard Modbus RTU and can connect to the global IoT.
‧Integrated design, and built-in IoT transmission and sensor.
‧Operating with mobile web pages, it is convenient to on-site operation.
‧The high-strength isolated cable can be put to use directly, and the signal is stable.
‧Switching protective cover to standard solution cover on site, it is convenient for calibration.
‧Ultra-low power consumption, it is suitable for large-scale deployment of green energy IoTs.
‧Wisdom design, storing parameter calibration, it can be installed directly on site after calibration.
‧IP68 submerged type and corrosion resistant material which can put into water without protective sleeve.
‧The NO3 sensor is equipped with temperature compensation and measurement (in accordance with NIEA W218.51C).
‧During calibration and auto-cleaning, keep the last reading value to avoid misoperation, and it read the state at the same time (calibrating/auto-cleaning/stabilizing).
[📍Applications]: Sewage, drinking water, Subterranean water, Aquaculture, River and lake detecting system.
‧DO Specification:
(1)Measuring rang:0~20mg/L (ppm)、0~200%
(2)Slope 70~130%
(3)Accuracy:±0.2mg/L(0~8mg/L)、±0.3mg/L(8~20mg/L)
(4)Resolution:0.01mg/L
(5)Reproducibilit:±0.5% F.S
(6)Electrode withstand voltae:Max. 100 Psig
(7)Operating temperatu:0~50°C
(8)Water velocity:Maximum 3M/S
(9)Response tim:T90 120 seconds
‧Temperature Specificatio:
(1)Temperature principle:NTC30K
(2)Measuring range:-10~120°C(ATC)
(3)Accuracy:±0.2°C
(4)Resolution:0.1°C
(5)Reproducibility:0.1°C
‧Other Specificatio:
(1)Housing Material:PP, acid and alkali-resistance/food grade/zero dissolutio
(2)Electrode material:silver / zinc electrod
(3)Dimension:ø45*L214mm
(4)Weight:≤350g
(5)Power:Auto-cleaning:12VDC or24 VDC(optionaL)、Non auto-cleaning:9~36VDC
(6)Power consumptio:Auto-cleaning:1.6w、Non auto-cleaning:0.8w
(1)Measuring rang:0~20mg/L (ppm)、0~200%
(2)Slope 70~130%
(3)Accuracy:±0.2mg/L(0~8mg/L)、±0.3mg/L(8~20mg/L)
(4)Resolution:0.01mg/L
(5)Reproducibilit:±0.5% F.S
(6)Electrode withstand voltae:Max. 100 Psig
(7)Operating temperatu:0~50°C
(8)Water velocity:Maximum 3M/S
(9)Response tim:T90 120 seconds
‧Temperature Specificatio:
(1)Temperature principle:NTC30K
(2)Measuring range:-10~120°C(ATC)
(3)Accuracy:±0.2°C
(4)Resolution:0.1°C
(5)Reproducibility:0.1°C
‧Other Specificatio:
(1)Housing Material:PP, acid and alkali-resistance/food grade/zero dissolutio
(2)Electrode material:silver / zinc electrod
(3)Dimension:ø45*L214mm
(4)Weight:≤350g
(5)Power:Auto-cleaning:12VDC or24 VDC(optionaL)、Non auto-cleaning:9~36VDC
(6)Power consumptio:Auto-cleaning:1.6w、Non auto-cleaning:0.8w
