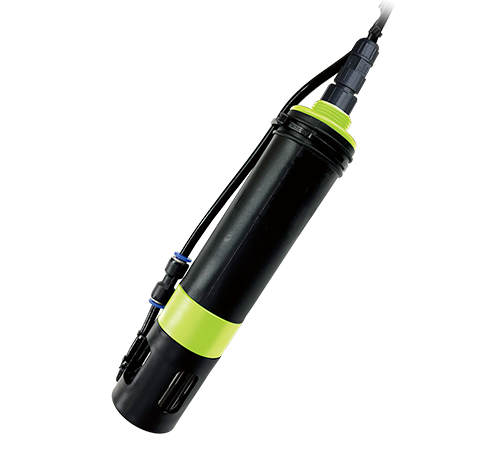

NH4 Sensor
1.Integrated design, and built-in IoT transmission and sensor.
2.IP68 submerged type and corrosion resistant material which can put into water without protective sleeve.
3.Ultra-low power consumption, it is suitable for large-scale deployment of green energy IoTs.
4.The high-strength isolated cable can be put to use directly, and the signal is stable.
5.The NO3 sensor is equipped with temperature compensation and measurement (in accordance with NIEA
W218.51C).
6.With dual digital communication of RS-485 and Wi-Fi.
7.Standard Modbus RTU and can connect to the global IoT.

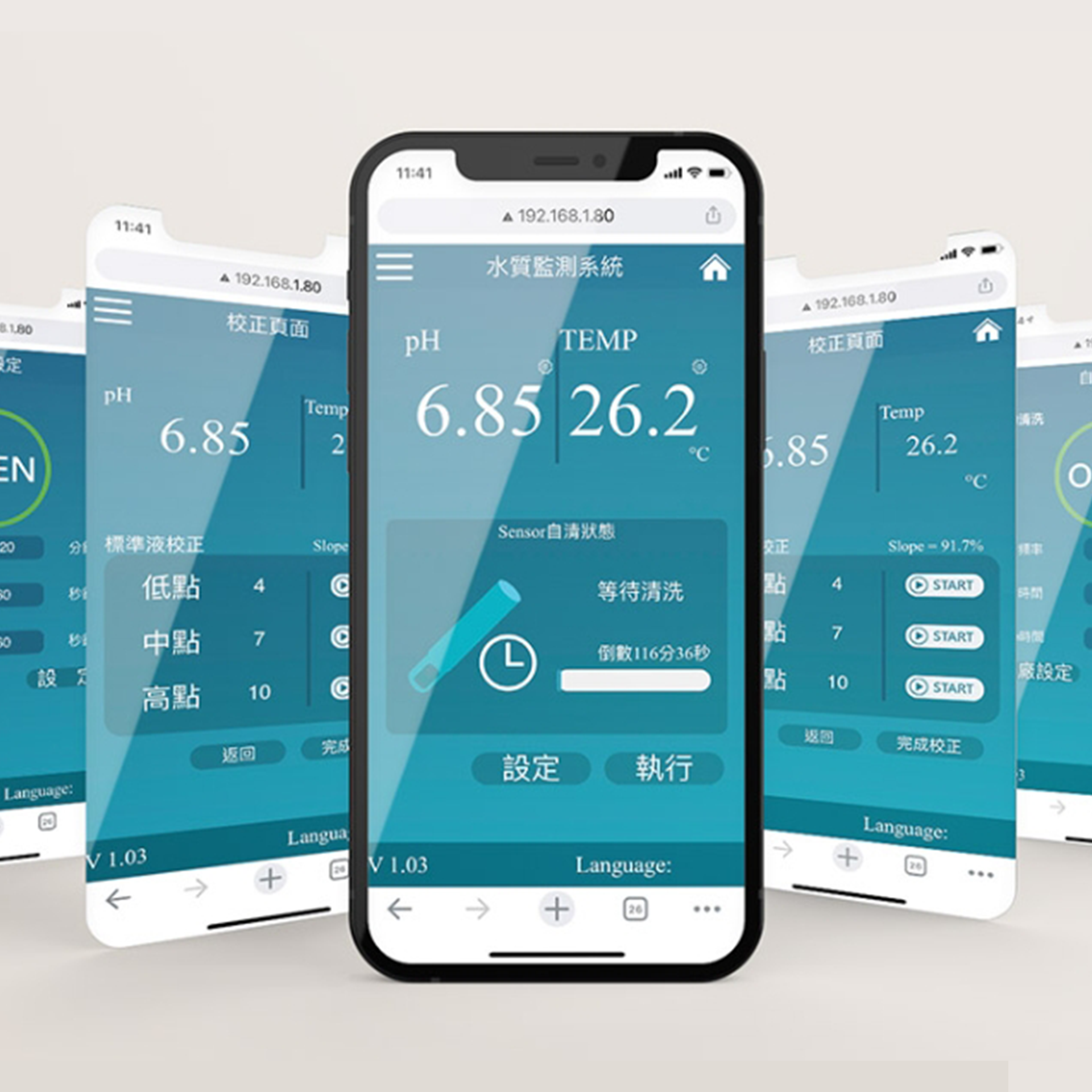

8.Operating with mobile web pages, it is convenient to on-site operation.
9.Wisdom design, storing parameter calibration, it can be installed directly on site after calibration.
1.Operating with mobile web pages, it is convenient to on-site operation.
2.Switching protective cover to standard solution cover on site, it is convenient for calibration.
3.During calibration and auto-cleaning, keep the last reading value to avoid misoperation, and it read the state at the same time (calibrating/auto-cleaning/stabilizing).
12.Applications: Sewage, drinking water, Subterranean water, Aquaculture, River and lake detecting system.
2.IP68 submerged type and corrosion resistant material which can put into water without protective sleeve.
3.Ultra-low power consumption, it is suitable for large-scale deployment of green energy IoTs.
4.The high-strength isolated cable can be put to use directly, and the signal is stable.
5.The NO3 sensor is equipped with temperature compensation and measurement (in accordance with NIEA
W218.51C).
6.With dual digital communication of RS-485 and Wi-Fi.
7.Standard Modbus RTU and can connect to the global IoT.
8.Operating with mobile web pages, it is convenient to on-site operation.
9.Wisdom design, storing parameter calibration, it can be installed directly on site after calibration.
1.Operating with mobile web pages, it is convenient to on-site operation.
2.Switching protective cover to standard solution cover on site, it is convenient for calibration.
3.During calibration and auto-cleaning, keep the last reading value to avoid misoperation, and it read the state at the same time (calibrating/auto-cleaning/stabilizing).
12.Applications: Sewage, drinking water, Subterranean water, Aquaculture, River and lake detecting system.
NH4 Specification:
(1)Measuring range:0～1000mg/L(ppm)、Slope reading 70~130%、Zero potential -50~50mv
(2)Accuracy:±5% reading ±0.5mg/L(3)Resolution:0.01 mg/L(4)Reproducibility:±3% reading ±0.5mg/L
(5)Electrode withstand voltage:Max. 50 Psig(6)Operating temperature:0~40°C
(7)Response time:T90 ≤120 second
Temperature Specification:
(1)Temperature principle:NTC30K(2)Measuring range:-10~120°C(ATC)
(3)Accuracy:±0.2°C(4)Resolution:0.1°C(5)Reproducibility:0.1°C
Other Specification:
(1)Housing Material:PP, acid and alkali resistance/food grade/ zero dissolution
(2)Dimension:ø45*L214mm(3)Weight:≤340 公克
(4)Power:Auto-cleaning:12VDCor24VDC、Non auto-cleaning:9~36VDC
(5)Power consumption:Auto-cleaning:1.6w、Non auto-cleaning:0.8w
(1)Measuring range:0～1000mg/L(ppm)、Slope reading 70~130%、Zero potential -50~50mv
(2)Accuracy:±5% reading ±0.5mg/L(3)Resolution:0.01 mg/L(4)Reproducibility:±3% reading ±0.5mg/L
(5)Electrode withstand voltage:Max. 50 Psig(6)Operating temperature:0~40°C
(7)Response time:T90 ≤120 second
Temperature Specification:
(1)Temperature principle:NTC30K(2)Measuring range:-10~120°C(ATC)
(3)Accuracy:±0.2°C(4)Resolution:0.1°C(5)Reproducibility:0.1°C
Other Specification:
(1)Housing Material:PP, acid and alkali resistance/food grade/ zero dissolution
(2)Dimension:ø45*L214mm(3)Weight:≤340 公克
(4)Power:Auto-cleaning:12VDCor24VDC、Non auto-cleaning:9~36VDC
(5)Power consumption:Auto-cleaning:1.6w、Non auto-cleaning:0.8w
